Drain tiles, also known as perimeter drains or French drains, are typically located around the perimeter of a building’s foundation. Here’s a more detailed explanation of their placement:

Location of Drain Tiles

  1. Exterior Foundation:
    • Drain tiles are usually installed outside the foundation walls, buried at the footing level (where the foundation meets the soil).

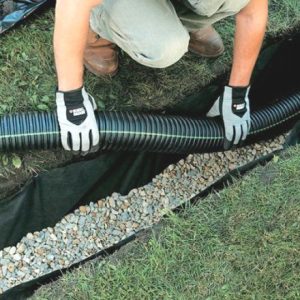

    • They are placed in a bed of gravel and slope slightly downward to direct water away from the foundation.
  2. Interior Foundation (if applicable):
    • In some cases, drain tiles are installed inside the basement or crawlspace, especially if there are persistent water issues.
    • These interior systems collect water that seeps through the foundation and direct it to a sump pump for removal.

Purpose of Drain Tiles

  • To prevent water buildup around the foundation.
  • To protect the building from water damage, mold, and foundation cracks.
  • To redirect groundwater away from the structure.

Key Components

  • Perforated Pipes: Allow water to enter the drain tile system.

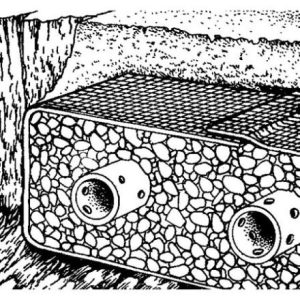

  • Gravel Bed: Surrounds the pipes to facilitate water flow and prevent clogging.
  • Filter Fabric: Wraps around the gravel to keep soil and debris out.

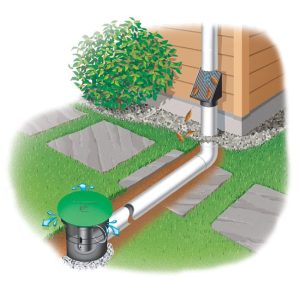

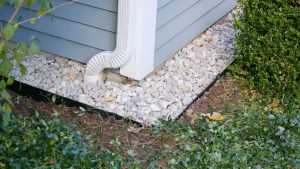

  • Outlet: Directs water to a storm drain, dry well, or other safe discharge point.

In New York City (NYC), the frost line (also called the frost depth) is an important consideration for construction, particularly for foundations, footings, and utility lines. Here’s what you need to know:

Frost Line in NYC

  • The frost line depth in NYC is approximately 30 to 40 inches below the ground surface.
  • This means that foundations, footings, and other critical structures must extend below this depth to prevent damage from frost heave.

Why the Frost Line Matters

  1. Frost Heave:
    • When water in the soil freezes, it expands and can push against foundations, footings, and pipes, causing cracks, shifting, or structural damage.
    • Building below the frost line ensures stability by keeping foundations in soil that doesn’t freeze.
  2. Building Codes:
    • NYC building codes require foundations and footings to extend below the frost line to ensure safety and durability.

Applications in Construction

  1. Foundations and Footings:
    • Must extend at least 36 inches below ground to avoid frost-related issues.
  2. Utility Lines (Water, Sewer, Gas):
    • Buried utilities are typically installed below the frost line to prevent freezing and damage.
  3. Drainage Systems:
    • Drain tiles and other drainage systems should be installed below the frost line to remain functional year-round.

Tips for Builders in NYC

  • Always check local building codes for the most up-to-date frost line requirements.
  • Use proper insulation and drainage techniques to further protect structures from frost damage.
